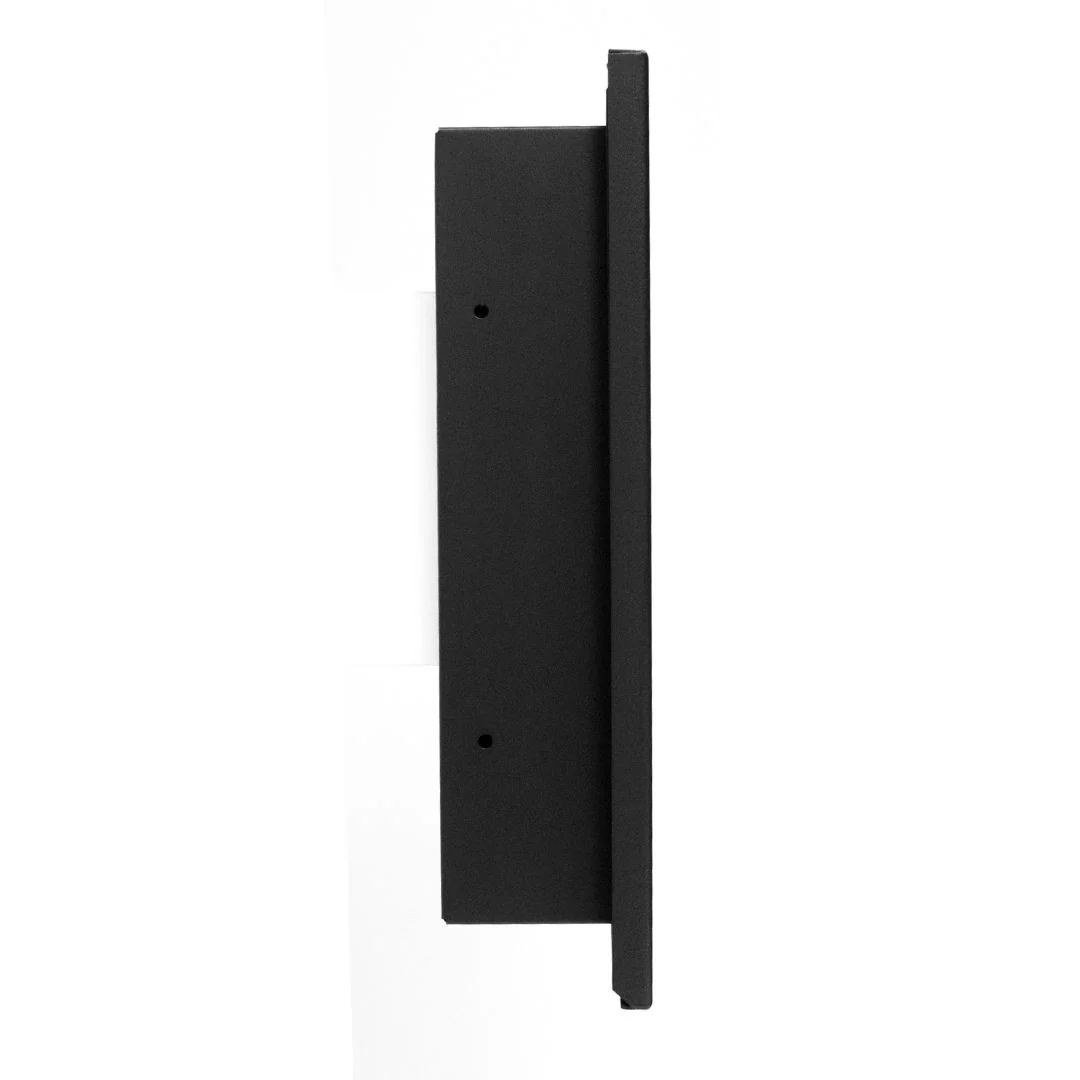

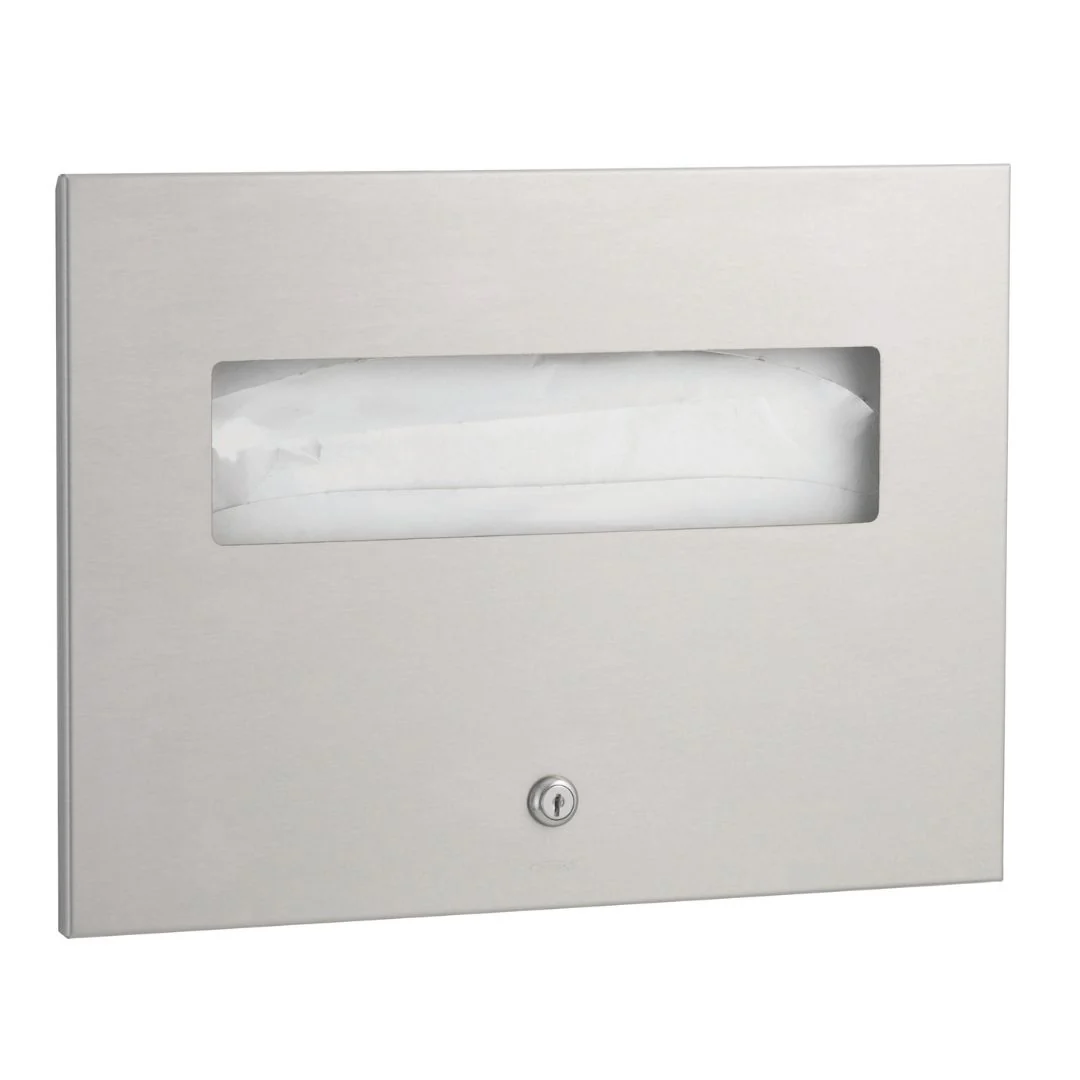

B-3013 Stainless Steel Recessed Seat-Cover Dispenser
MATERIALS
- Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction.

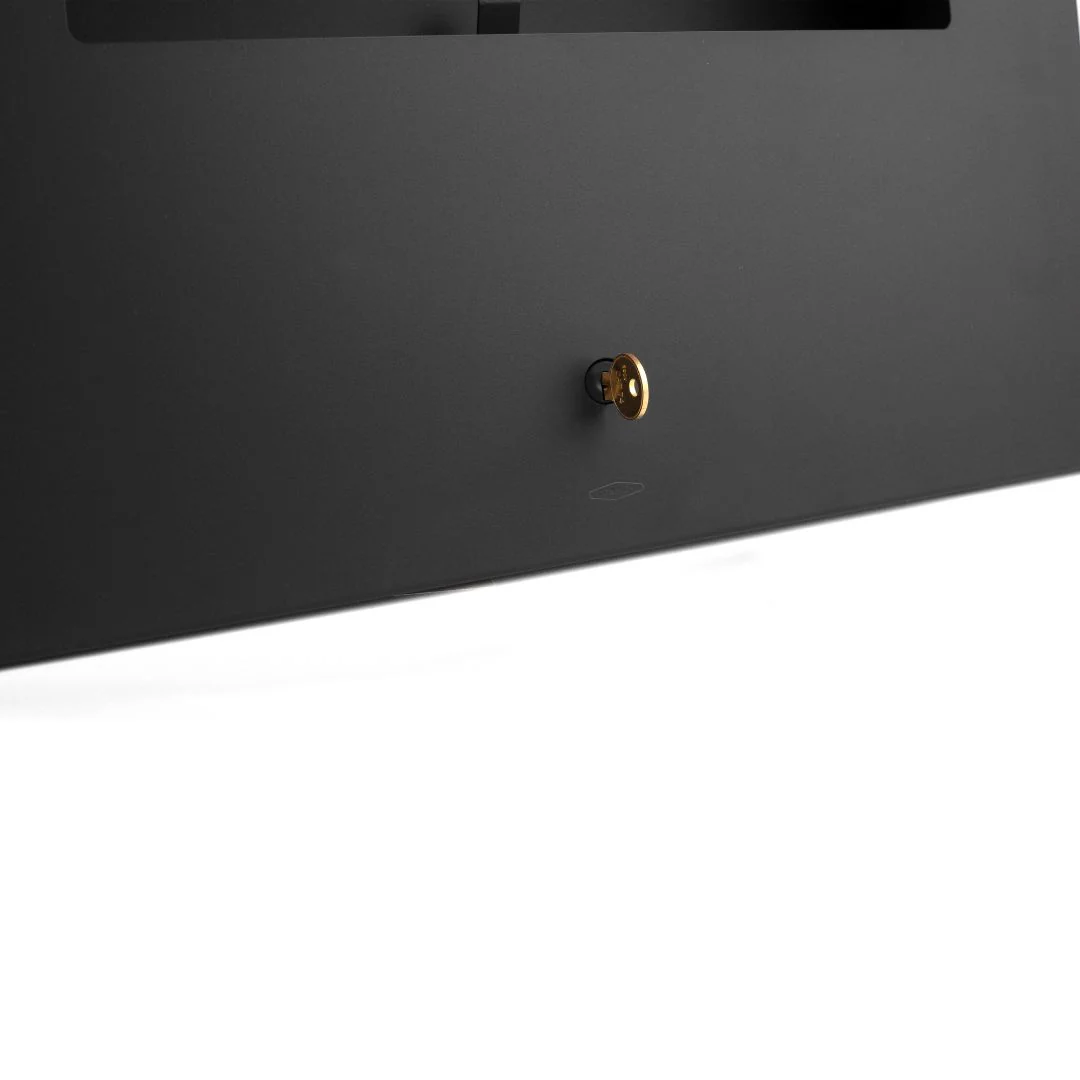

- Door — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin finish or matte black, as specified. 14mm 90° return for maximum rigidity. Secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion.
OPERATION
Dispenses single or half-fold paper toilet seat covers. To fill dispenser, door unlocks with key provided. Capacity: 500 toilet seat covers.
INSTALLATION
Provide framed rough wall opening 405 x 290mm. Minimum recessed depth required from finish face of wall is 70mm. Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with four #8 x 4.2 x 32mm sheet-metal screws (not furnished).
SPECIFICATION
Recessed toilet-seat-cover dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish or matte black, as specified. Door shall be 18 gauge (1.2mm); have 14mm 90° return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Dispenser shall have a minimum capacity of 500 paper toilet seat covers.
Original: $235.82
-65%$235.82
$82.54More Images
B-3013 Stainless Steel Recessed Seat-Cover Dispenser
MATERIALS
- Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction.
- Door — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin finish or matte black, as specified. 14mm 90° return for maximum rigidity. Secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion.
OPERATION
Dispenses single or half-fold paper toilet seat covers. To fill dispenser, door unlocks with key provided. Capacity: 500 toilet seat covers.
INSTALLATION
Provide framed rough wall opening 405 x 290mm. Minimum recessed depth required from finish face of wall is 70mm. Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with four #8 x 4.2 x 32mm sheet-metal screws (not furnished).
SPECIFICATION
Recessed toilet-seat-cover dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish or matte black, as specified. Door shall be 18 gauge (1.2mm); have 14mm 90° return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Dispenser shall have a minimum capacity of 500 paper toilet seat covers.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MATERIALS
- Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction.
- Door — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin finish or matte black, as specified. 14mm 90° return for maximum rigidity. Secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion.
OPERATION
Dispenses single or half-fold paper toilet seat covers. To fill dispenser, door unlocks with key provided. Capacity: 500 toilet seat covers.
INSTALLATION
Provide framed rough wall opening 405 x 290mm. Minimum recessed depth required from finish face of wall is 70mm. Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with four #8 x 4.2 x 32mm sheet-metal screws (not furnished).
SPECIFICATION
Recessed toilet-seat-cover dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish or matte black, as specified. Door shall be 18 gauge (1.2mm); have 14mm 90° return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Dispenser shall have a minimum capacity of 500 paper toilet seat covers.
